LQW04AN13NH00D

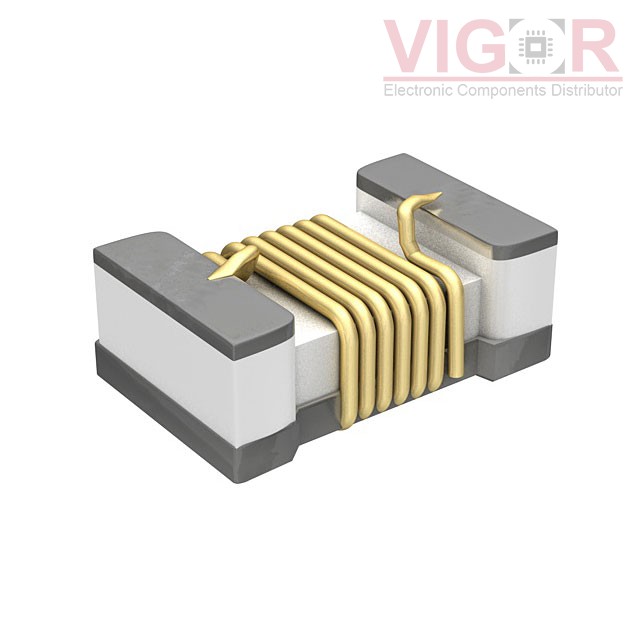

Image is for reference,
please contact us to get the real picture

Part No :: LQW04AN13NH00D

Manufacturer: TOKO / Murata

Description: FIXED IND 13NH 280MA 340 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: LQW04AN13NH00D PDF

Availability: 0 pieces

Unit Price: ~~$0.16161~~

Current price of LQW04AN13NH00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW04AN13NH00D Specifications

Type	Description
Series:	LQW04
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	13 nH
Tolerance:	±3%
Current Rating (Amps):	280 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	340mOhm Max
Q @ Freq:	15 @ 250MHz
Frequency - Self Resonant:	6GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0302 (0804 Metric)
Supplier Device Package:	03015 (0804 Metric)
Size / Dimension:	0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max):	0.018" (0.45mm)
