784771022

784771022

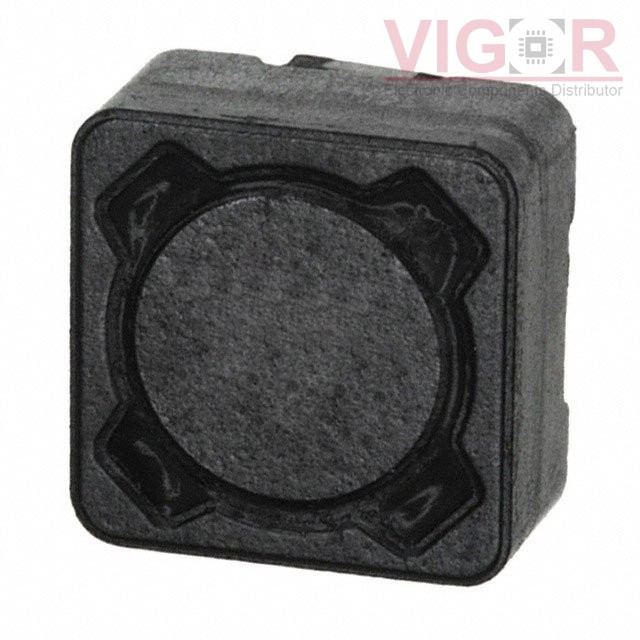

Image is for reference,
please contact us to get the real picture

Part No :

784771022

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 2.2UH 7.2A 12.5 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
784771022 PDF
Availability
0 pieces
Unit Price
$1.60200

Current price of 784771022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

784771022 Specifications
Type Description
Series:WE-PDA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Nickel Zinc Ferrite (NiZn)
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):7.2 A
Current - Saturation (Isat):10.5A
Shielding:Shielded
DC Resistance (DCR):12.5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:82.7MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:1260
Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):0.248" (6.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CW161009A-72NJ

CW161009A-72NJ

FIXED IND 72NH 400MA 490MOHM SMD

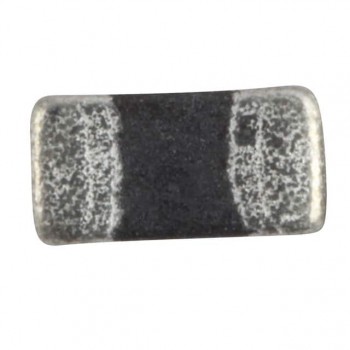

HOT MCL1608V1-3R3-R

MCL1608V1-3R3-R

FIXED IND 3.3UH 100MA 650 MOHM

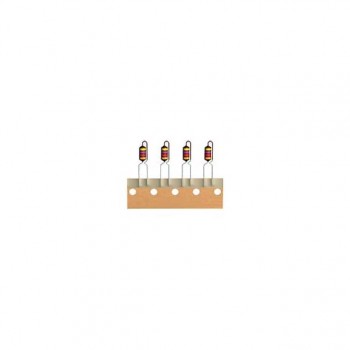

HOT B78148S1682K009
