CC453232-561KL

CC453232-561KL

Image is for reference,
please contact us to get the real picture

Part No :

CC453232-561KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 70MA 21 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
CC453232-561KL PDF
Availability
0 pieces
Unit Price
$0.15444

Current price of CC453232-561KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CC453232-561KL Specifications
Type Description
Series:CC453232
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):70 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):21Ohm Max
Q @ Freq:20 @ 796kHz
Frequency - Self Resonant:3MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW15AN16NH00D

LQW15AN16NH00D

FIXED IND 16NH 370MA 240 MOHM
HOT PA0511.101NL

PA0511.101NL

FIXED IND 120NH 31A 0.39 MOHM

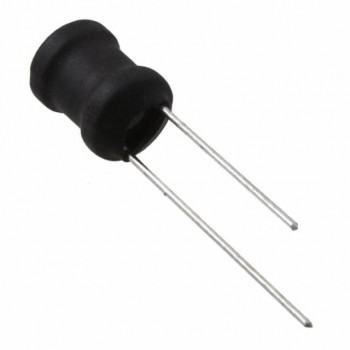

HOT RLB9012-473KL
