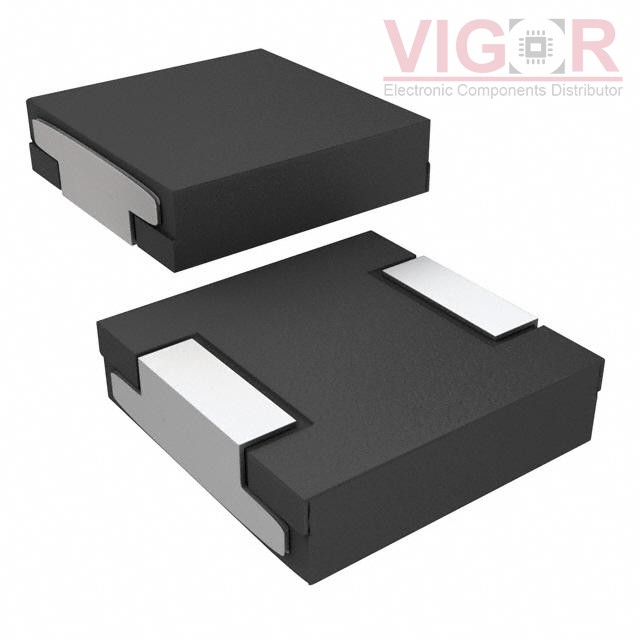

IHLP5050CEERR82M01

Image is for reference,
please contact us to get the real picture

Part No :: IHLP5050CEERR82M01

Manufacturer: Vishay / Dale

Description: FIXED IND 820NH 25A 3 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: IHLP5050CEERR82M01 PDF

Availability: 13 pieces

Unit Price: ~~$1.53000~~

Current price of IHLP5050CEERR82M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP5050CEERR82M01 Specifications

Type	Description
Series:	IHLP-5050CE-01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	820 nH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	44A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.508" W (13.20mm x 12.90mm)
Height - Seated (Max):	0.138" (3.50mm)
