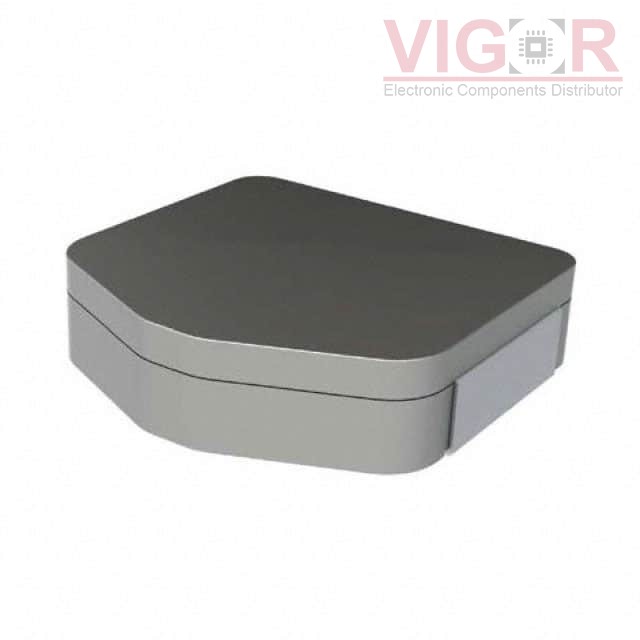

MPX1D1740L220

Image is for reference,
please contact us to get the real picture

Part No :: MPX1D1740L220

Manufacturer: KEMET

Description: FIXED IND 22UH 6.5A 46.4 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: MPX1D1740L220 PDF

Availability: 100 pieces

Unit Price: ~~$5.59000~~

Current price of MPX1D1740L220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPX1D1740L220 Specifications

Type	Description
Series:	METCOM MPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	6.5 A
Current - Saturation (Isat):	10A
Shielding:	Shielded
DC Resistance (DCR):	46.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	5MHz
Ratings:	-
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.669" L x 0.673" W (17.00mm x 17.10mm)
Height - Seated (Max):	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

WL05JT47N

FIXED IND 47NH 500MA 310MOHM SMD

HOT

MLD2016S4R7MTD25

FIXED IND 4.7UH 750MA 325 MOHM

HOT

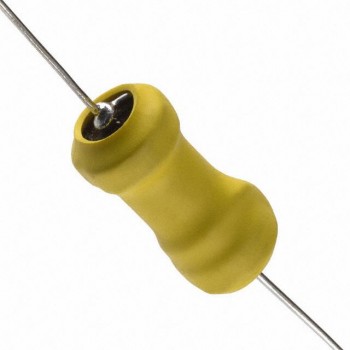

4590R-154K
