NLCV32T-2R2M-EFR

NLCV32T-2R2M-EFR

Image is for reference,
please contact us to get the real picture

Part No :

NLCV32T-2R2M-EFR

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 1.2A 138 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
NLCV32T-2R2M-EFR PDF
Availability
13866 pieces
Unit Price
$0.25000

Current price of NLCV32T-2R2M-EFR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV32T-2R2M-EFR Specifications
Type Description
Series:NLCV-EF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.2 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):138mOhm Max
Q @ Freq:15 @ 7.96MHz
Frequency - Self Resonant:68MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

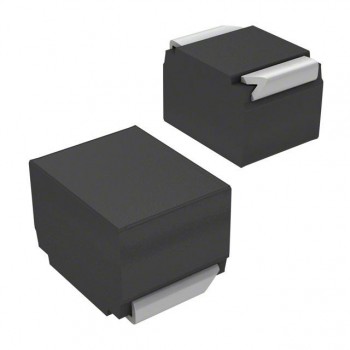

HOT B82422T3680J000

B82422T3680J000

FIXED IND 68NH 450MA 230 MOHM

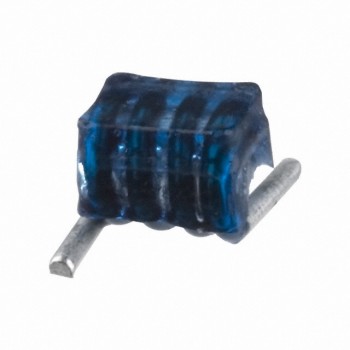

HOT 4426R-6

4426R-6

FIXED IND 17.5NH 3A SMD

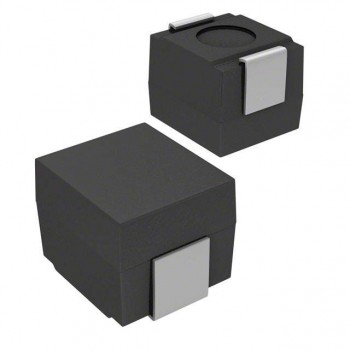

HOT S1008R-473K
