SDS680R-155M

SDS680R-155M

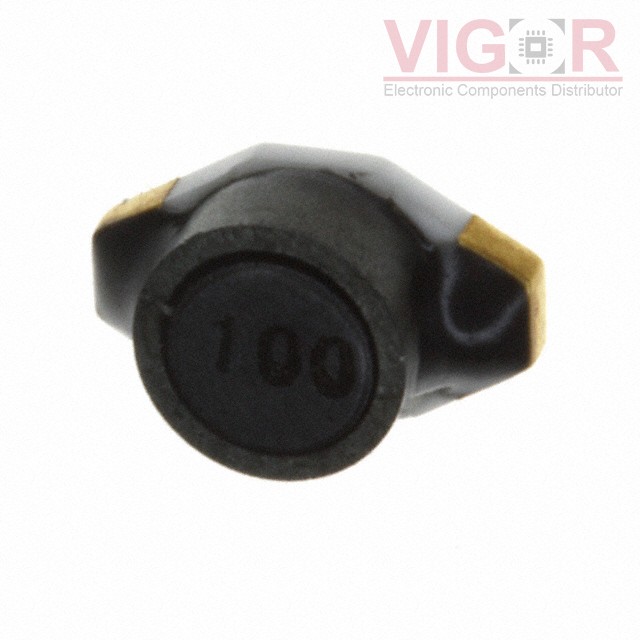

Image is for reference,
please contact us to get the real picture

Part No :

SDS680R-155M

Manufacturer
API Delevan
Description
FIXED IND 1.5MH 120MA 4.2 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SDS680R-155M PDF
Availability
0 pieces
Unit Price
$2.05350

Current price of SDS680R-155M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDS680R-155M Specifications
Type Description
Series:SDS680R
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1.5 mH
Tolerance:±20%
Current Rating (Amps):120 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):4.2Ohm Max
Q @ Freq:-
Frequency - Self Resonant:2MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):0.115" (2.92mm)
