AIUR-04-391J

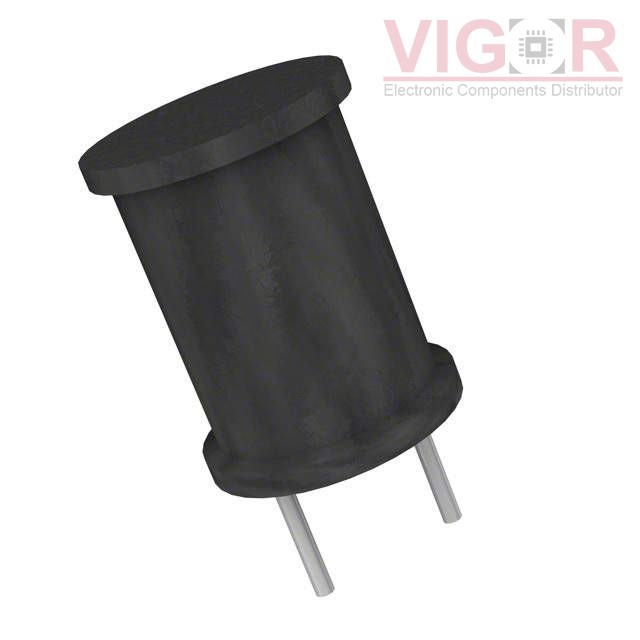

Image is for reference,
please contact us to get the real picture

Part No :: AIUR-04-391J

Manufacturer: Abracon

Description: FIXED IND 390UH 200MA 4 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 24 - Aug 28 2025

DataSheet: AIUR-04-391J PDF

Availability: 0 pieces

Unit Price: ~~$0.24480~~

Current price of AIUR-04-391J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AIUR-04-391J Specifications

Type	Description
Series:	AIUR-04
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	390 µH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	200mA
Shielding:	Unshielded
DC Resistance (DCR):	4Ohm Max
Q @ Freq:	30 @ 796kHz
Frequency - Self Resonant:	2.1MHz
Ratings:	-
Operating Temperature:	-25°C ~ 85°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.335" Dia (8.50mm)
Height - Seated (Max):	0.441" (11.20mm)
