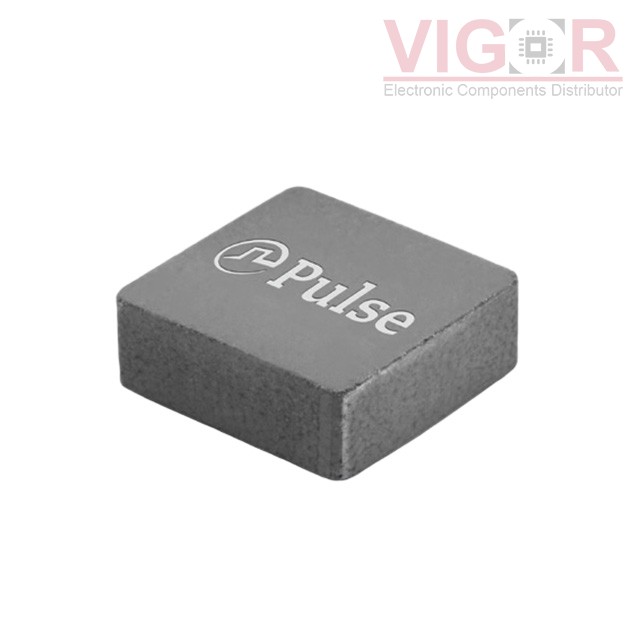

PM2203.801NLT

PM2203.801NLT

Image is for reference,
please contact us to get the real picture

Part No :

PM2203.801NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 800NH 13.1A 5.65 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
PM2203.801NLT PDF
Availability
0 pieces
Unit Price
$1.14235

Current price of PM2203.801NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM2203.801NLT Specifications
Type Description
Series:PM2203.XXXNLT
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:-
Inductance:800 nH
Tolerance:±20%
Current Rating (Amps):13.1 A
Current - Saturation (Isat):20A
Shielding:Unshielded
DC Resistance (DCR):5.65mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max):0.122" (3.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0402HS-121EGTS

0402HS-121EGTS

FIXED IND 120NH 50MA 2.66 OHM
HOT HF1008R-472G

HF1008R-472G

FIXED IND 4.7UH 273MA 2 OHM SMD

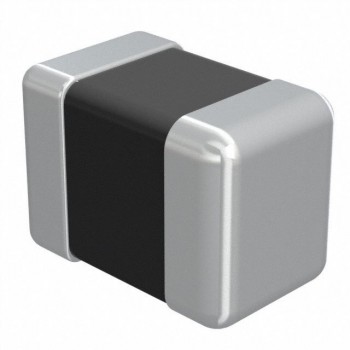

HOT LBR2012T100M
