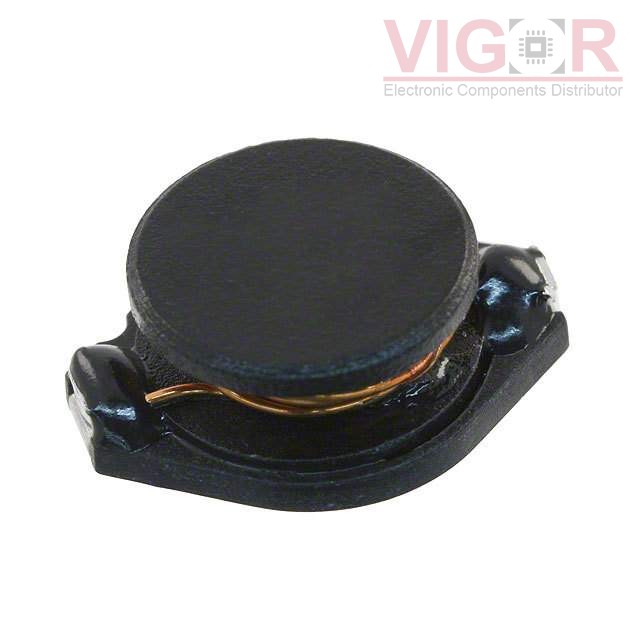

SDR1806-331KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR1806-331KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 330UH 1A 580 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: SDR1806-331KL PDF

Availability: 0 pieces

Unit Price: ~~$1.16000~~

Current price of SDR1806-331KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1806-331KL Specifications

Type	Description
Series:	SDR1806
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	330 µH
Tolerance:	±10%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.8A
Shielding:	Unshielded
DC Resistance (DCR):	580mOhm Max
Q @ Freq:	18 @ 796kHz
Frequency - Self Resonant:	3.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):	0.272" (6.90mm)
