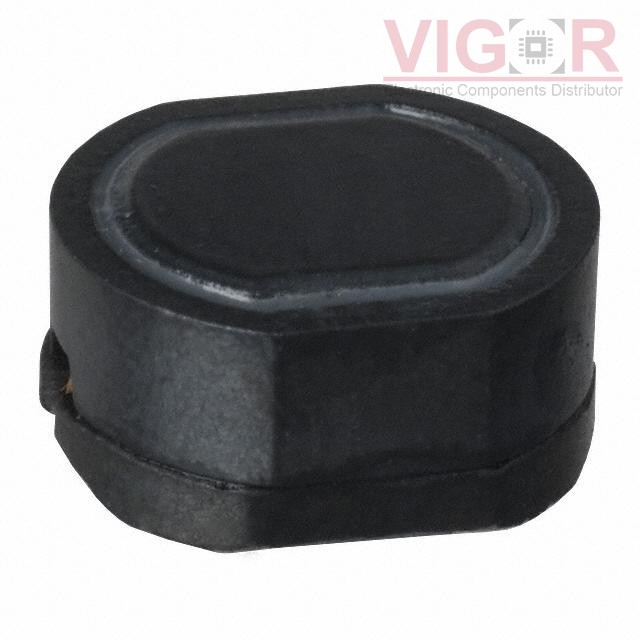

PM105SB-471K-RC

Image is for reference,
please contact us to get the real picture

Part No :: PM105SB-471K-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 470UH 330MA 1.5OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: PM105SB-471K-RC PDF

Availability: 1000 pieces

Unit Price: ~~$0.52920~~

Current price of PM105SB-471K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105SB-471K-RC Specifications

Type	Description
Series:	PM105SB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	470 µH
Tolerance:	±10%
Current Rating (Amps):	330 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	1.5Ohm Max
Q @ Freq:	26 @ 796kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.390" L x 0.390" W (9.90mm x 9.90mm)
Height - Seated (Max):	0.189" (4.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MHQ1005P7N3HTD25

FIXED IND 7.3NH 600MA 170 MOHM

HOT

VLS201610CX-2R2M

FIXED IND 2.2UH 1.53A 163M OHM

HOT

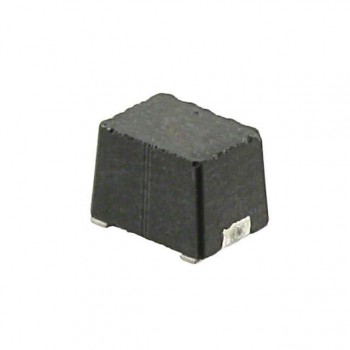

ISC1812ES390J
