7443632200

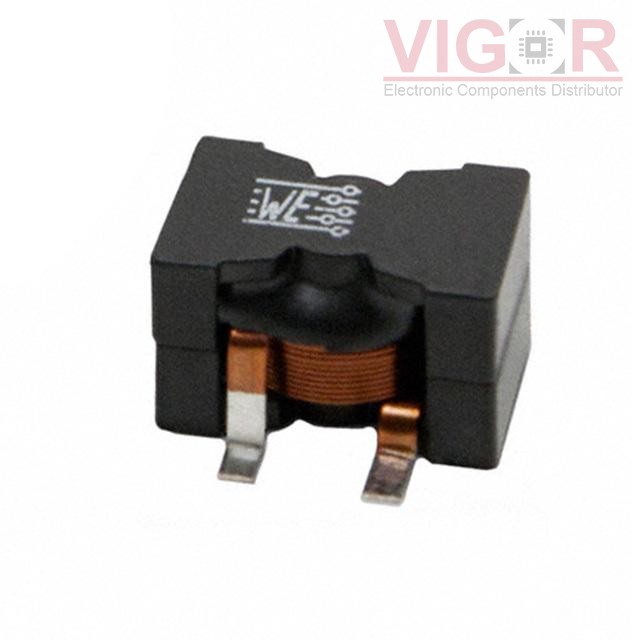

Image is for reference,
please contact us to get the real picture

Part No :: 7443632200

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 12A 10.65 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 7443632200 PDF

Availability: 1157 pieces

Unit Price: ~~$6.93000~~

Current price of 7443632200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7443632200 Specifications

Type	Description
Series:	WE-HCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	22 µH
Tolerance:	±15%
Current Rating (Amps):	12 A
Current - Saturation (Isat):	15A
Shielding:	Shielded
DC Resistance (DCR):	10.65mOhm
Q @ Freq:	-
Frequency - Self Resonant:	12.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.858" L x 0.846" W (21.80mm x 21.50mm)
Height - Seated (Max):	0.571" (14.50mm)
