LQH43MN561J03L

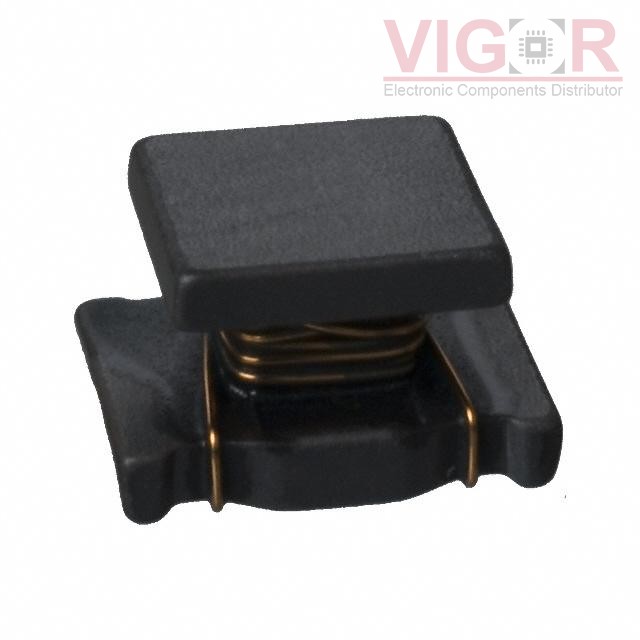

Image is for reference,
please contact us to get the real picture

Part No :: LQH43MN561J03L

Manufacturer: TOKO / Murata

Description: FIXED IND 560UH 70MA 14.5 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: LQH43MN561J03L PDF

Availability: 44 pieces

Unit Price: ~~$0.47000~~

Current price of LQH43MN561J03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH43MN561J03L Specifications

Type	Description
Series:	LQH43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±5%
Current Rating (Amps):	70 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	14.5Ohm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	2.7MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)
