LQW15AN91NG00D

LQW15AN91NG00D

Image is for reference,
please contact us to get the real picture

Part No :

LQW15AN91NG00D

Manufacturer
TOKO / Murata
Description
FIXED IND 91NH 125MA 2.38 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
LQW15AN91NG00D PDF
Availability
12979 pieces
Unit Price
$0.16000

Current price of LQW15AN91NG00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW15AN91NG00D Specifications
Type Description
Series:LQW15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:91 nH
Tolerance:±2%
Current Rating (Amps):125 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.38Ohm Max
Q @ Freq:20 @ 150MHz
Frequency - Self Resonant:2.1GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:-
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

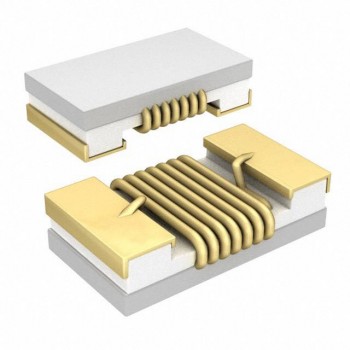

HOT 744765124A

744765124A

FIXED IND 24NH 400MA 300 MOHM

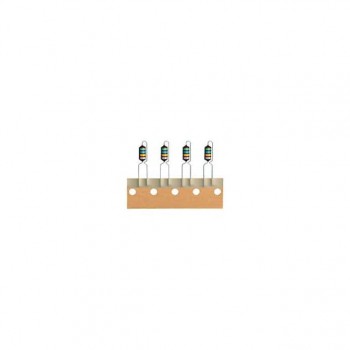

HOT B78148E1151M009

B78148E1151M009

FIXED IND 150NH 6.5A 17 MOHM TH

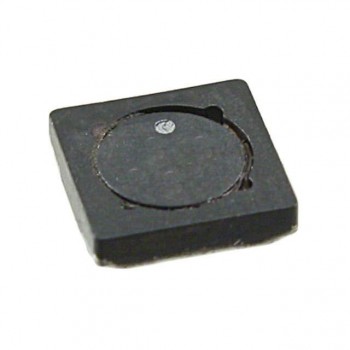

HOT SD12-471-R
