WCL2520-2R2-R

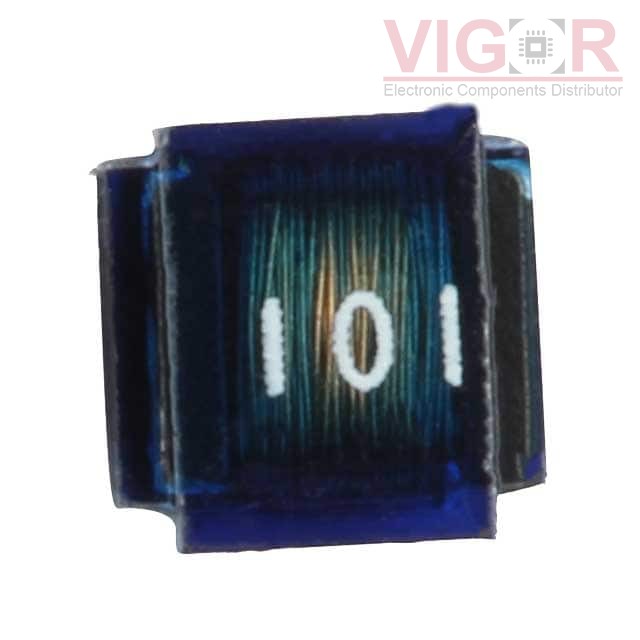

Image is for reference,
please contact us to get the real picture

Part No :

WCL2520-2R2-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 2.2UH 315MA 1.3 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
WCL2520-2R2-R PDF
Availability
3727 pieces
Unit Price
$0.25000

Current price of WCL2520-2R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WCL2520
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:2.2 µH
Tolerance:±5%
Current Rating (Amps):315 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.3Ohm Max
Q @ Freq:12 @ 7.96MHz
Frequency - Self Resonant:150MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008
Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):0.083" (2.10mm)
