5022-824F

5022-824F

Image is for reference,
please contact us to get the real picture

Part No :

5022-824F

Manufacturer
API Delevan
Description
FIXED IND 820UH 110MA 30 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
5022-824F PDF
Availability
0 pieces
Unit Price
$6.51358

Current price of 5022-824F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022-824F Specifications
Type Description
Series:5022
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:820 µH
Tolerance:±1%
Current Rating (Amps):110 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):30Ohm Max
Q @ Freq:65 @ 790kHz
Frequency - Self Resonant:2.7MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AIAP-03-821K

AIAP-03-821K

FIXED IND 820UH 970MA 655 MOHM
HOT LQP02TN6N2J02D

LQP02TN6N2J02D

FIXED IND 6.2NH 140MA 1.8 OHM

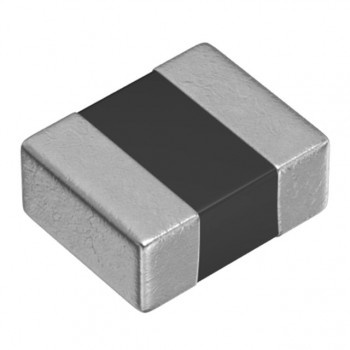

HOT MLP2016H2R2MT0S1
