LQW2UASR56J0CL

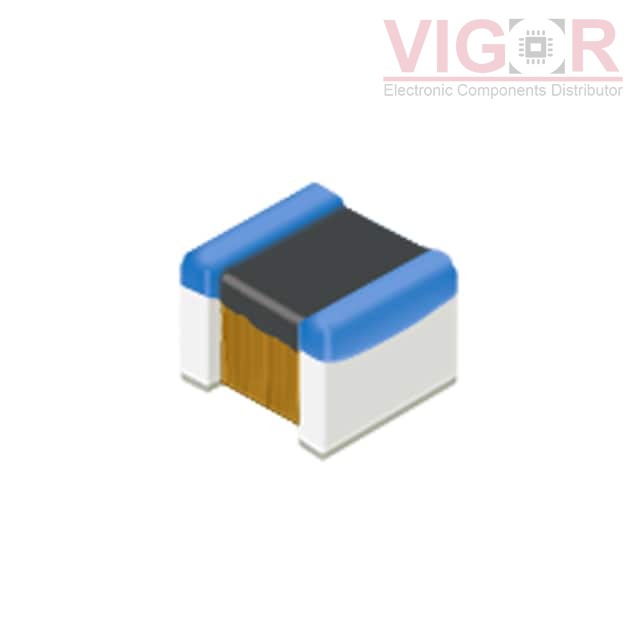

Image is for reference,
please contact us to get the real picture

Part No :: LQW2UASR56J0CL

Manufacturer: TOKO / Murata

Description: FIXED IND 560NH 400MA 1.33 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: LQW2UASR56J0CL PDF

Availability: 1710 pieces

Unit Price: ~~$0.22000~~

Current price of LQW2UASR56J0CL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW2UASR56J0CL Specifications

Type	Description
Series:	LQW2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.33Ohm Max
Q @ Freq:	45 @ 100MHz
Frequency - Self Resonant:	415MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008
Size / Dimension:	0.103" L x 0.096" W (2.62mm x 2.45mm)
Height - Seated (Max):	0.080" (2.03mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

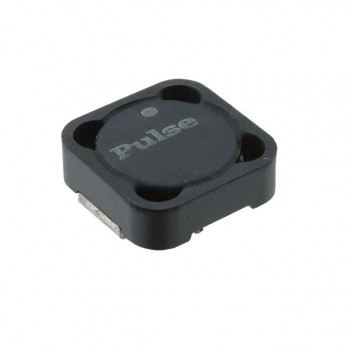

P1168.334NLT

FIXED IND 330UH 660MA 955 MOHM

HOT

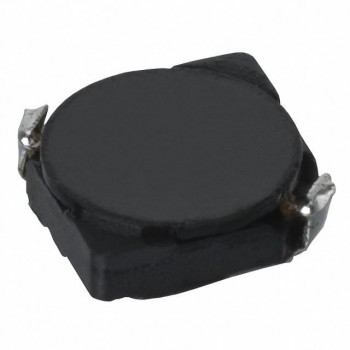

CDRH5D28NP-180NC

FIXED IND 18UH 1A 110 MOHM SMD

HOT

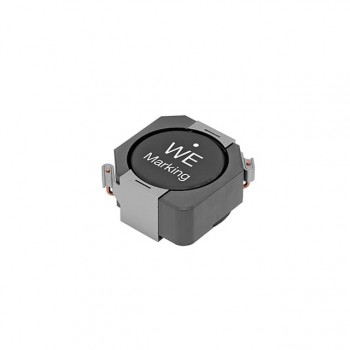

7447706471
