77F120K-TR-RC

77F120K-TR-RC

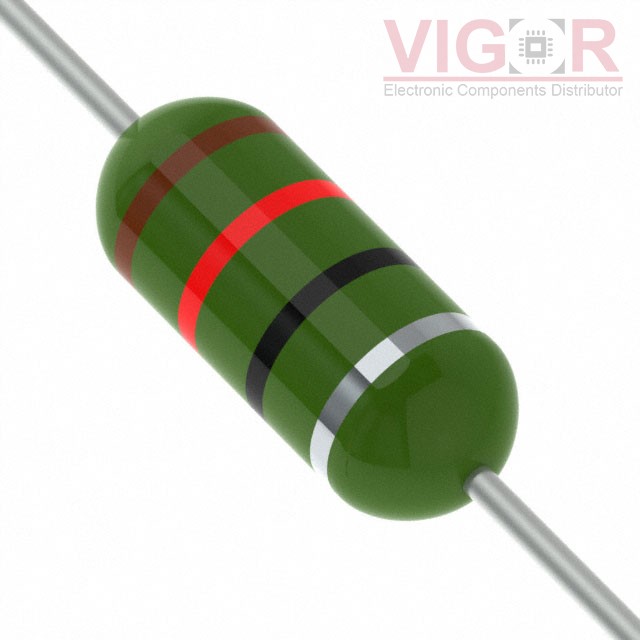

Image is for reference,
please contact us to get the real picture

Part No :

77F120K-TR-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 12UH 480MA 700 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
77F120K-TR-RC PDF
Availability
0 pieces
Unit Price
$0.10080

Current price of 77F120K-TR-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77F120K-TR-RC Specifications
Type Description
Series:77F
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:12 µH
Tolerance:±10%
Current Rating (Amps):480 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):700mOhm Max
Q @ Freq:75 @ 2.52MHz
Frequency - Self Resonant:34MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
Height - Seated (Max):-
