5022R-112F

Image is for reference,
please contact us to get the real picture

Part No :: 5022R-112F

Manufacturer: API Delevan

Description: FIXED IND 1.1UH 930MA 420 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: 5022R-112F PDF

Availability: 0 pieces

Unit Price: ~~$6.51358~~

Current price of 5022R-112F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022R-112F Specifications

Type	Description
Series:	5022R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Phenolic
Inductance:	1.1 µH
Tolerance:	±1%
Current Rating (Amps):	930 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	420mOhm Max
Q @ Freq:	33 @ 7.9MHz
Frequency - Self Resonant:	190MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.84mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SRR4028-391Y

FIXED IND 390UH 260MA 2.2OHM SMD

HOT

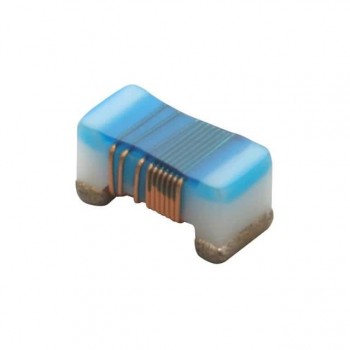

LQW18AS56NG0ZD

FIXED IND 56NH 600MA 310 MOHM

HOT

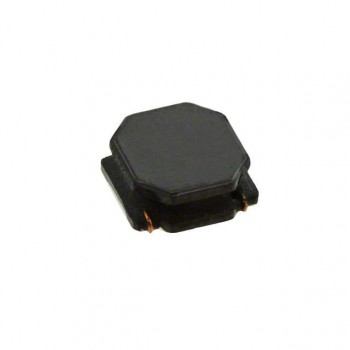

NR6028T220M
