P3519R-564K

P3519R-564K

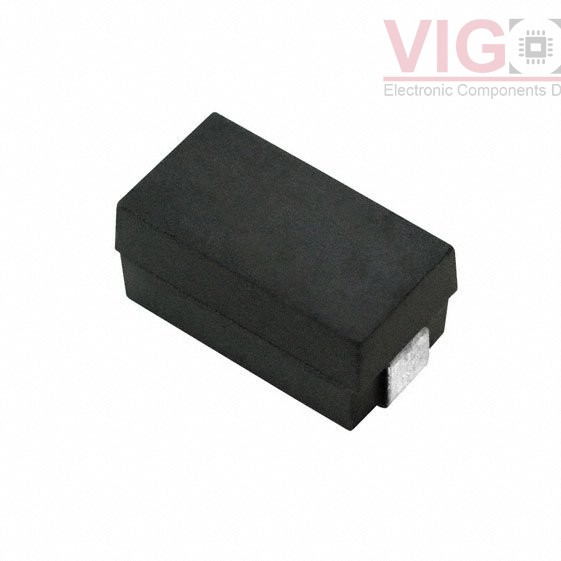

Image is for reference,
please contact us to get the real picture

Part No :

P3519R-564K

Manufacturer
API Delevan
Description
FIXED IND 560UH 160MA 12.3 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
P3519R-564K PDF
Availability
0 pieces
Unit Price
$1.80600

Current price of P3519R-564K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P3519R-564K Specifications
Type Description
Series:P3519R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):160 mA
Current - Saturation (Isat):180mA
Shielding:Unshielded
DC Resistance (DCR):12.3Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 130°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max):0.185" (4.70mm)
