SPM6545VT-220M-D

SPM6545VT-220M-D

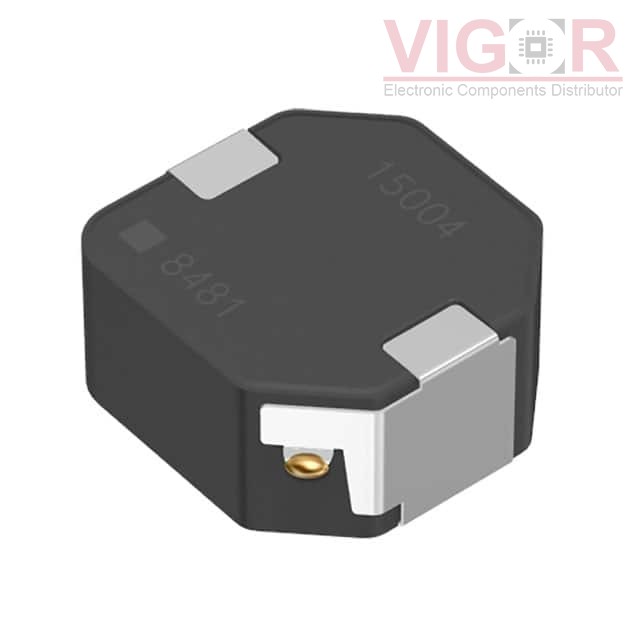

Image is for reference,
please contact us to get the real picture

Part No :

SPM6545VT-220M-D

Manufacturer
TDK Corporation
Description
FIXED IND 22UH 3.2A 94.6 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SPM6545VT-220M-D PDF
Availability
2270 pieces
Unit Price
$2.57000

Current price of SPM6545VT-220M-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SPM6545VT-220M-D Specifications
Type Description
Series:SPM-VT-D
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal Composite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.2 A
Current - Saturation (Isat):3.9A
Shielding:Shielded
DC Resistance (DCR):94.6mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max):0.177" (4.50mm)
