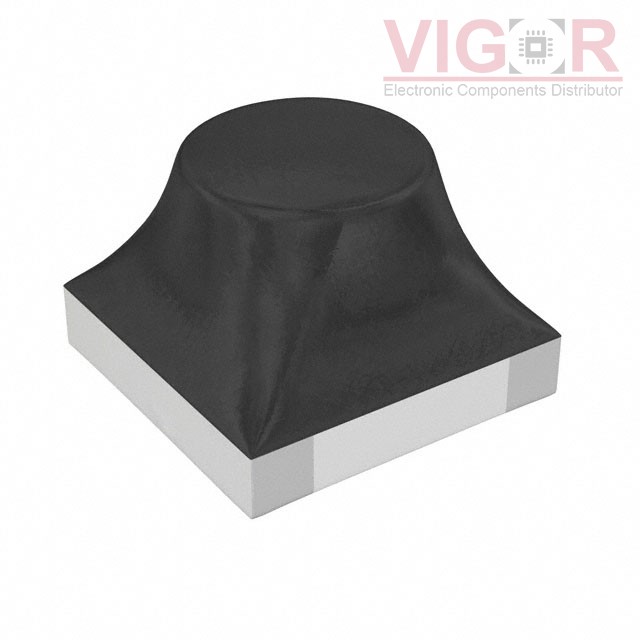

103-561JS

103-561JS

Image is for reference,
please contact us to get the real picture

Part No :

103-561JS

Manufacturer
API Delevan
Description
FIXED IND 560NH 590MA 278 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
103-561JS PDF
Availability
0 pieces
Unit Price
$9.26212

Current price of 103-561JS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

103-561JS Specifications
Type Description
Series:103
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):590 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):278mOhm Max
Q @ Freq:22 @ 25MHz
Frequency - Self Resonant:195MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 2 Lead
Supplier Device Package:-
Size / Dimension:0.100" L x 0.100" W (2.54mm x 2.54mm)
Height - Seated (Max):0.075" (1.91mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

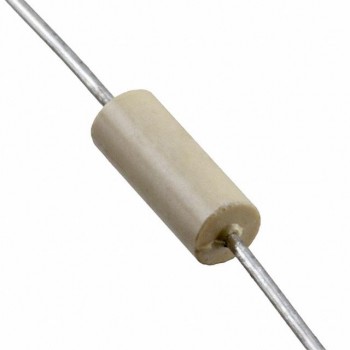

HOT ER1025-08KS

ER1025-08KS

FIXED IND 330NH 815MA 220 MOHM

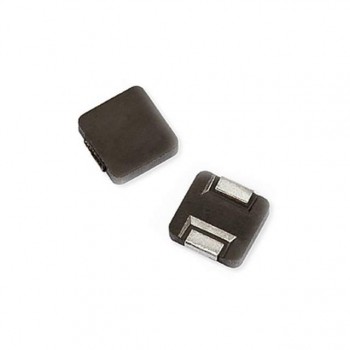

HOT MPI4020V2-2R2-R
