MPI4020V2-R56-R

MPI4020V2-R56-R

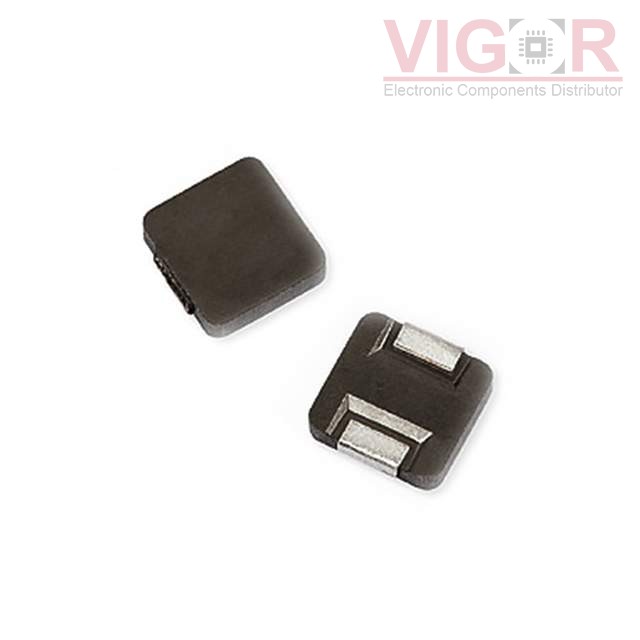

Image is for reference,
please contact us to get the real picture

Part No :

MPI4020V2-R56-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 560NH 7A 16 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
MPI4020V2-R56-R PDF
Availability
0 pieces
Unit Price
$0.69750

Current price of MPI4020V2-R56-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPI4020V2-R56-R Specifications
Type Description
Series:MPI40-V2
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Metal Composite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):7 A
Current - Saturation (Isat):10A
Shielding:Shielded
DC Resistance (DCR):16mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 2 Lead
Supplier Device Package:-
Size / Dimension:0.160" L x 0.171" W (4.06mm x 4.35mm)
Height - Seated (Max):0.079" (2.00mm)
