2727-22H

2727-22H

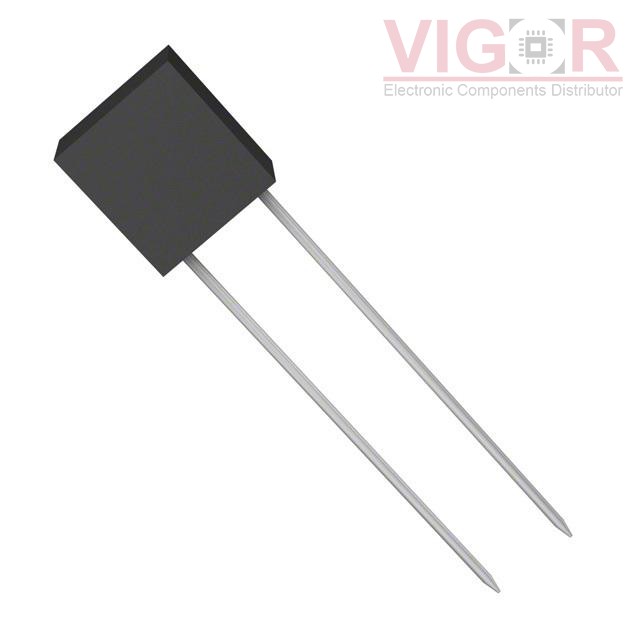

Image is for reference,
please contact us to get the real picture

Part No :

2727-22H

Manufacturer
API Delevan
Description
FIXED IND 560UH 77MA 32 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
2727-22H PDF
Availability
0 pieces
Unit Price
$31.20980

Current price of 2727-22H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2727-22H Specifications
Type Description
Series:2727
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Iron
Inductance:560 µH
Tolerance:±3%
Current Rating (Amps):77 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):32Ohm Max
Q @ Freq:55 @ 790kHz
Frequency - Self Resonant:3.1MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical
Supplier Device Package:-
Size / Dimension:0.280" L x 0.160" W (7.11mm x 4.06mm)
Height - Seated (Max):0.300" (7.62mm)
