CW252016-R10G

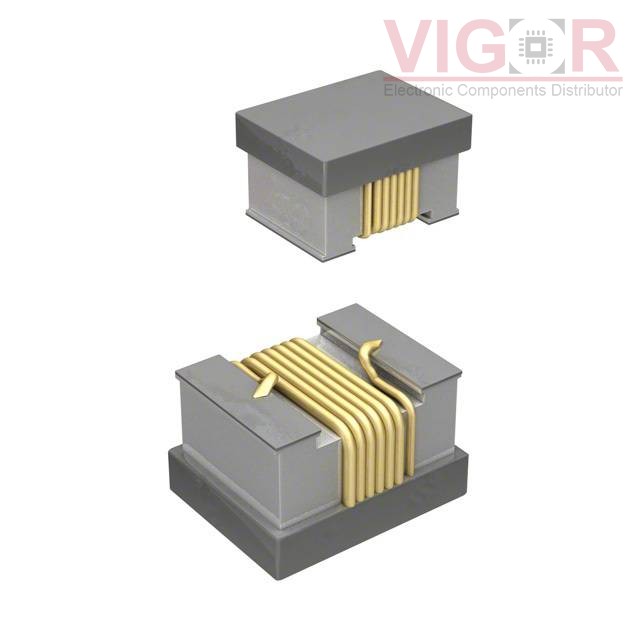

Image is for reference,
please contact us to get the real picture

Part No :: CW252016-R10G

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100NH 500MA 560MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CW252016-R10G PDF

Availability: 0 pieces

Unit Price: ~~$0.18848~~

Current price of CW252016-R10G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW252016-R10G Specifications

Type	Description
Series:	CW252016
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	100 nH
Tolerance:	±2%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	560mOhm Max
Q @ Freq:	60 @ 350MHz
Frequency - Self Resonant:	1GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)

Please confirm the specifications of the products when ordering.
