7443763540220

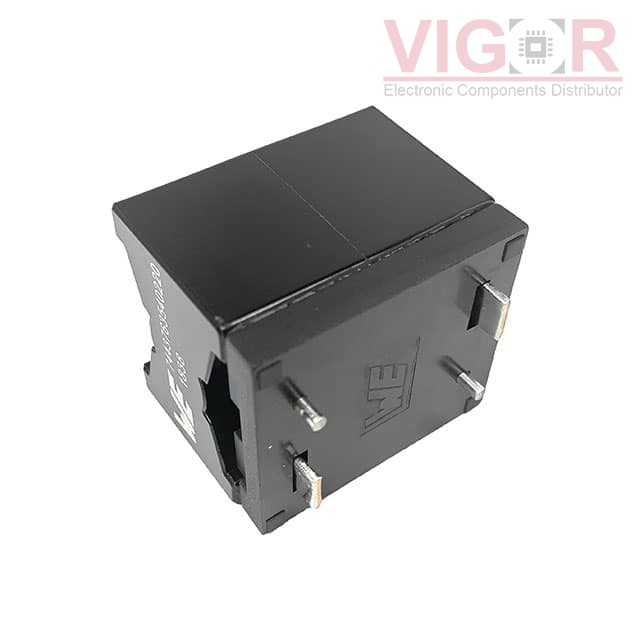

Image is for reference,
please contact us to get the real picture

Part No :: 7443763540220

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 40.6A 3.2 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: May 21 - May 25 2024

DataSheet: 7443763540220 PDF

Availability: 26 pieces

Unit Price: ~~$21.16000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 7443763540220 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

7443763540220 Specifications

Type	Description
Series:	WE-HCFT
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	40.6 A
Current - Saturation (Isat):	42A
Shielding:	Shielded
DC Resistance (DCR):	3.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	9MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.614" L x 1.417" W (41.00mm x 36.00mm)
Height - Seated (Max):	1.378" (35.00mm)
