744771122

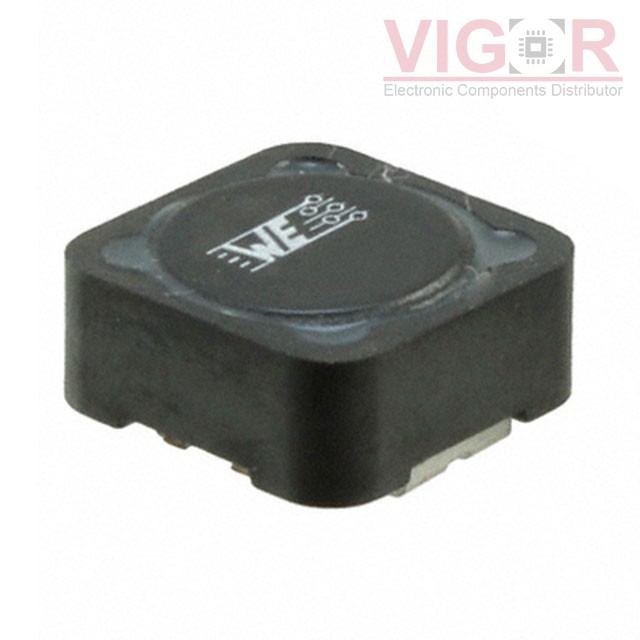

Image is for reference,
please contact us to get the real picture

Part No :: 744771122

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 3.37A 36 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2024

DataSheet: 744771122 PDF

Availability: 0 pieces

Unit Price: ~~$2.12000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 744771122 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

744771122 Specifications

Type	Description
Series:	WE-PD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	3.37 A
Current - Saturation (Isat):	3.77A
Shielding:	Shielded
DC Resistance (DCR):	36mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13.5MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.236" (6.00mm)
