MGV0605R56M-10

MGV0605R56M-10

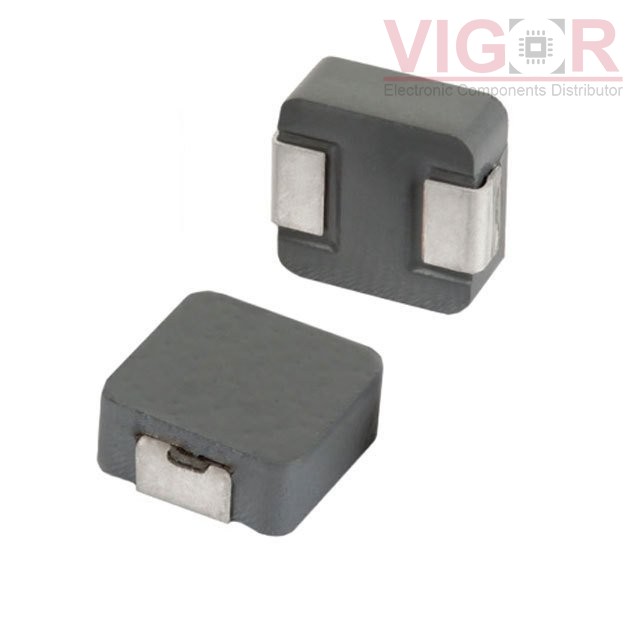

Image is for reference,
please contact us to get the real picture

Part No :

MGV0605R56M-10

Manufacturer
Laird - Performance Materials
Description
FIXED IND 560NH 20A 3.6 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
MGV0605R56M-10 PDF
Availability
440 pieces
Unit Price
$1.25000

Current price of MGV0605R56M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGV0605R56M-10 Specifications
Type Description
Series:MGV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):20 A
Current - Saturation (Isat):18A
Shielding:Shielded
DC Resistance (DCR):3.6mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.287" L x 0.264" W (7.30mm x 6.70mm)
Height - Seated (Max):0.209" (5.30mm)
