TYA3015220M-10

TYA3015220M-10

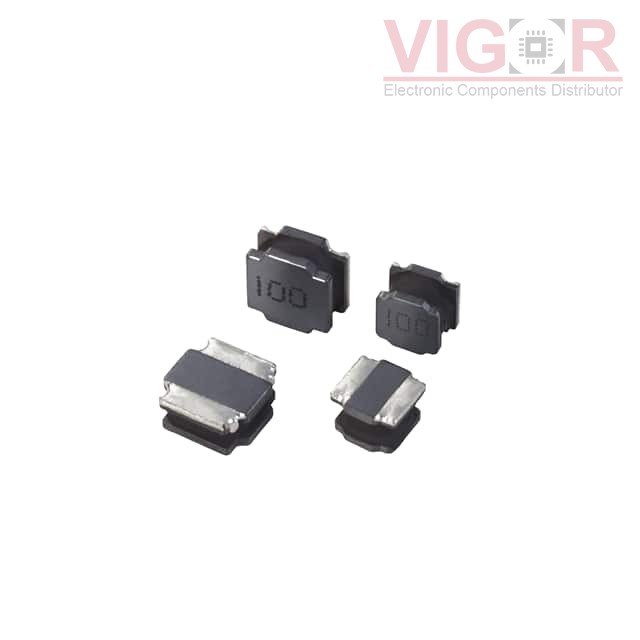

Image is for reference,
please contact us to get the real picture

Part No :

TYA3015220M-10

Manufacturer
Laird - Performance Materials
Description
FIXED IND 22UH 560MA 910 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
TYA3015220M-10 PDF
Availability
9954 pieces
Unit Price
$0.33000

Current price of TYA3015220M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TYA3015220M-10 Specifications
Type Description
Series:TYA3015
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):560 mA
Current - Saturation (Isat):1A
Shielding:Shielded
DC Resistance (DCR):910mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):0.065" (1.65mm)
