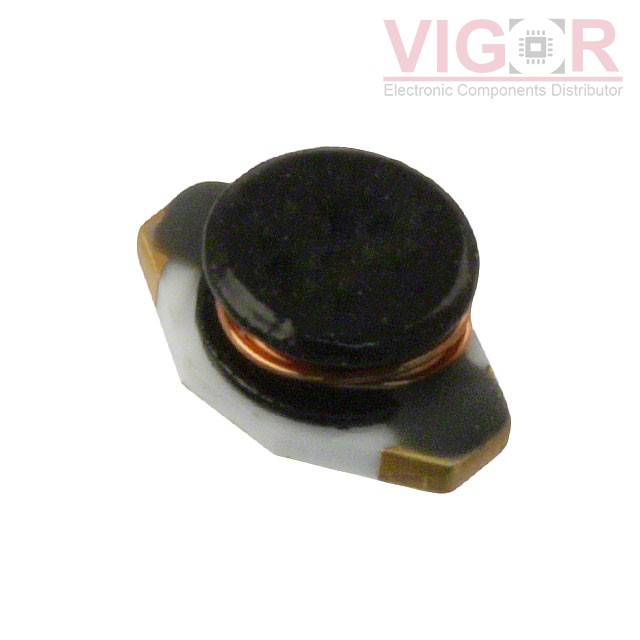

SDR6603-681M

Image is for reference,
please contact us to get the real picture

Part No :: SDR6603-681M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680UH 120MA 9.2OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: SDR6603-681M PDF

Availability: 0 pieces

Unit Price: ~~$0.51480~~

Current price of SDR6603-681M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR6603-681M Specifications

Type	Description
Series:	SDR6603
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	140mA
Shielding:	Unshielded
DC Resistance (DCR):	9.2Ohm Max
Q @ Freq:	58 @ 796kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):	0.115" (2.92mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MLK1005S68NJT000

FIXED IND 68NH 150MA 1.5 OHM SMD

HOT

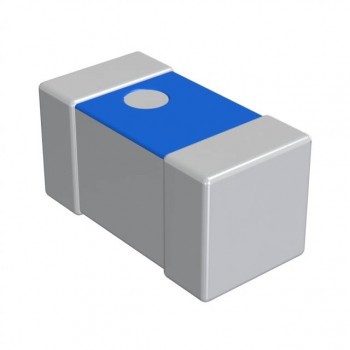

LQP02TN1N4C02D

FIXED IND 1.4NH 220MA 600 MOHM

HOT

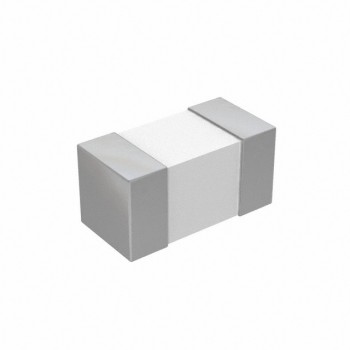

AIMC-0402-8N2S-T
