36501E15NJTDG

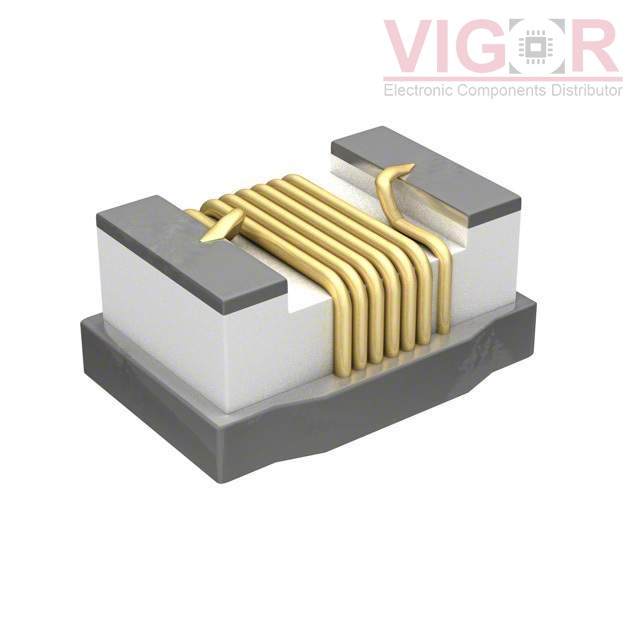

Image is for reference,
please contact us to get the real picture

Part No :: 36501E15NJTDG

Manufacturer: TE Connectivity AMP Connectors

Description: FIXED IND 15NH 560MA 172 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: 36501E15NJTDG PDF

Availability: 46 pieces

Unit Price: ~~$0.56000~~

Current price of 36501E15NJTDG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

36501E15NJTDG Specifications

Type	Description
Series:	3650, Sigma Inductors
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	15 nH
Tolerance:	±5%
Current Rating (Amps):	560 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	172mOhm Max
Q @ Freq:	24 @ 250MHz
Frequency - Self Resonant:	3.28GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max):	0.024" (0.61mm)
