CW201212-R56J

CW201212-R56J

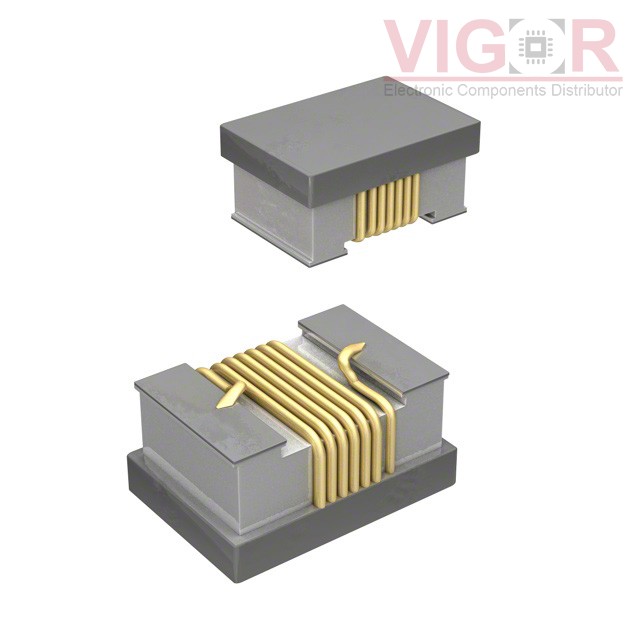

Image is for reference,
please contact us to get the real picture

Part No :

CW201212-R56J

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 230MA 1.9OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
CW201212-R56J PDF
Availability
0 pieces
Unit Price
$0.13277

Current price of CW201212-R56J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW201212-R56J Specifications
Type Description
Series:CW201212
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):230 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.9Ohm
Q @ Freq:23 @ 50MHz
Frequency - Self Resonant:340MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:50 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max):0.059" (1.50mm)
