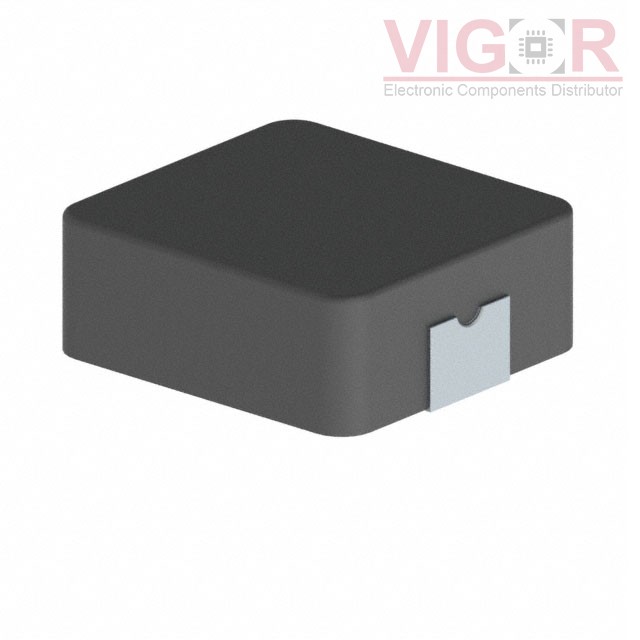

HCM1A1305-120-R

HCM1A1305-120-R

Image is for reference,
please contact us to get the real picture

Part No :

HCM1A1305-120-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 12UH 5.5A 24MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
HCM1A1305-120-R PDF
Availability
0 pieces
Unit Price
$3.02568

Current price of HCM1A1305-120-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A1305-120-R Specifications
Type Description
Series:HCM1A
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron Powder
Inductance:12 µH
Tolerance:±20%
Current Rating (Amps):5.5 A
Current - Saturation (Isat):9A
Shielding:Shielded
DC Resistance (DCR):24mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max):0.197" (5.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

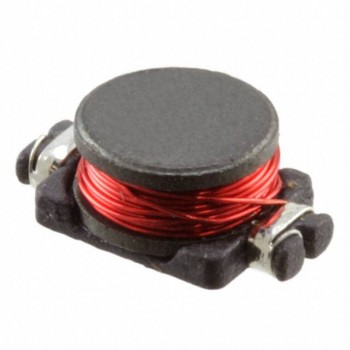

HOT P0770.152NL

P0770.152NL

FIXED IND 1.5UH 2.6A 50 MOHM SMD

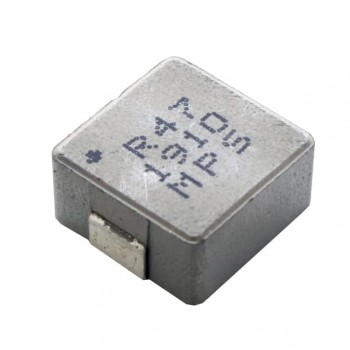

HOT MPL-AY1265-R56

MPL-AY1265-R56

FIXED IND 560NH 31A 1.1 MOHM SMD

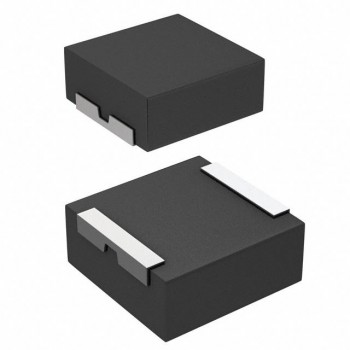

HOT IHLP6767DZER150M11
