NLV32T-R22J-EF

Image is for reference,
please contact us to get the real picture

Part No :: NLV32T-R22J-EF

Manufacturer: TDK Corporation

Description: FIXED IND 220NH 450MA 320 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: NLV32T-R22J-EF PDF

Availability: 2617 pieces

Unit Price: ~~$0.24000~~

Current price of NLV32T-R22J-EF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV32T-R22J-EF Specifications

Type	Description
Series:	NLV-EF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	220 nH
Tolerance:	±5%
Current Rating (Amps):	450 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	320mOhm Max
Q @ Freq:	30 @ 25.2MHz
Frequency - Self Resonant:	350MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ASPI-0315S-330M-T

FIXED IND 33UH 320MA 675 MOHM

HOT

ISC1812BN1R2J

FIXED IND 1.2UH 429MA 380 MOHM

HOT

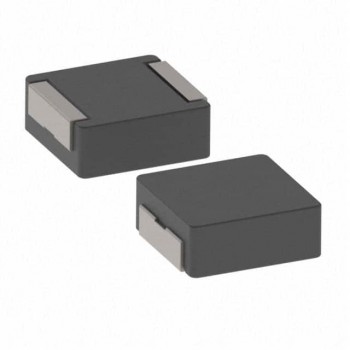

PM4344.103NLT
