SRR0805-561K

SRR0805-561K

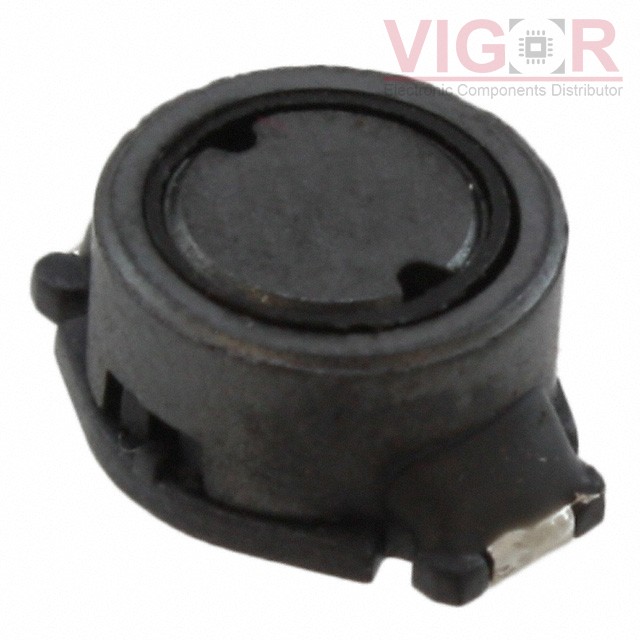

Image is for reference,
please contact us to get the real picture

Part No :

SRR0805-561K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 180MA 3 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SRR0805-561K PDF
Availability
0 pieces
Unit Price
$0.41140

Current price of SRR0805-561K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR0805-561K Specifications
Type Description
Series:SRR0805
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):180 mA
Current - Saturation (Isat):340mA
Shielding:Shielded
DC Resistance (DCR):3Ohm Max
Q @ Freq:32 @ 796kHz
Frequency - Self Resonant:3MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max):0.185" (4.70mm)
