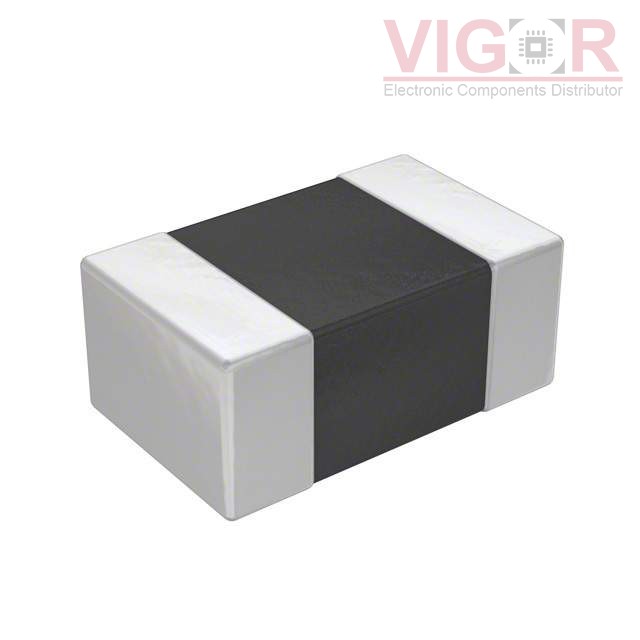

ASMPH-0805-R47M-T

ASMPH-0805-R47M-T

Image is for reference,
please contact us to get the real picture

Part No :

ASMPH-0805-R47M-T

Manufacturer
Abracon
Description
FIXED IND 470NH 1.5A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
ASMPH-0805-R47M-T PDF
Availability
3706 pieces
Unit Price
$0.30000

Current price of ASMPH-0805-R47M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ASMPH-0805-R47M-T Specifications
Type Description
Series:ASMPH-0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:470 nH
Tolerance:±20%
Current Rating (Amps):1.5 A
Current - Saturation (Isat):1.2A
Shielding:Shielded
DC Resistance (DCR):80mOhm
Q @ Freq:-
Frequency - Self Resonant:100MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 22R105C

22R105C

FIXED IND 1MH 170MA 3.63 OHM TH
HOT HF1008R-751J

HF1008R-751J

FIXED IND 750NH 275MA 1.95 OHM
HOT PM4340.562NLT

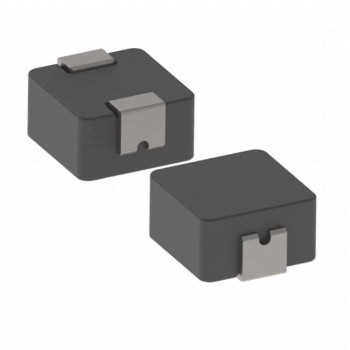

PM4340.562NLT
