M83446/39-29F

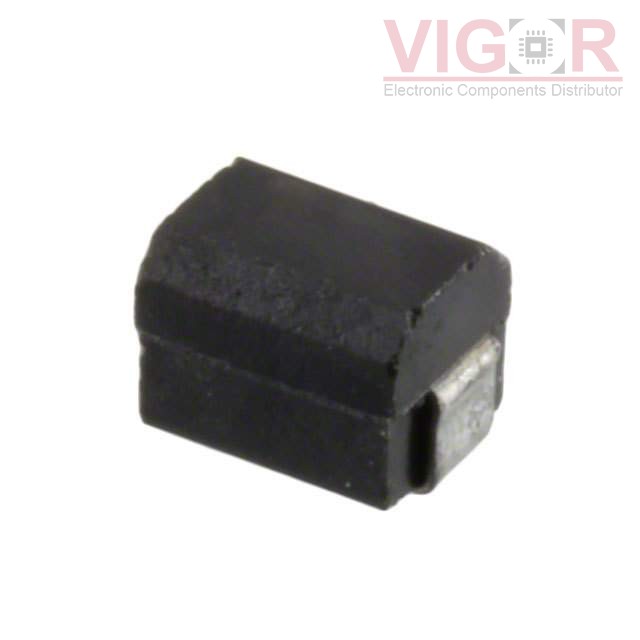

Image is for reference,
please contact us to get the real picture

Part No :: M83446/39-29F

Manufacturer: API Delevan

Description: FIXED IND 2.2UH 535MA 700 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: M83446/39-29F PDF

Availability: 687 pieces

Unit Price: ~~$5.07000~~

Current price of M83446/39-29F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M83446/39-29F Specifications

Type	Description
Series:	Military, MIL-PRF-39010, M83446/39
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±5%
Current Rating (Amps):	535 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	700mOhm Max
Q @ Freq:	50 @ 7.9MHz
Frequency - Self Resonant:	55MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)
