AX97-30820

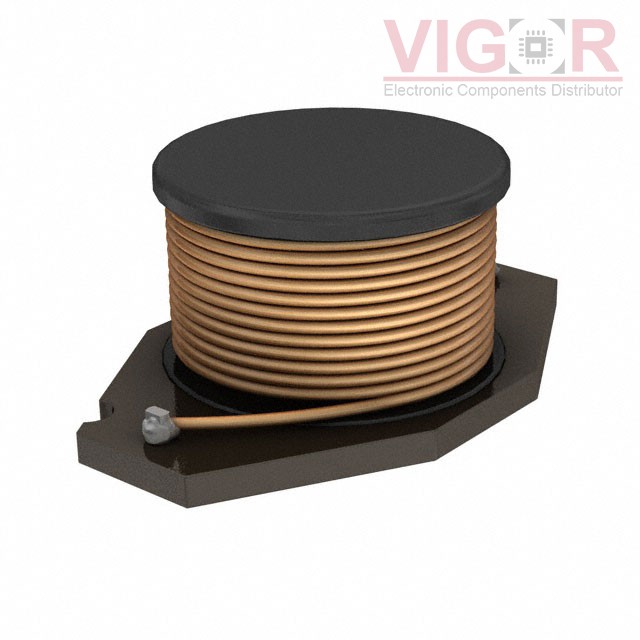

Image is for reference,
please contact us to get the real picture

Part No :: AX97-30820

Manufacturer: Triad Magnetics

Description: FIXED IND 82UH 1.58A 240 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: AX97-30820 PDF

Availability: 0 pieces

Unit Price: ~~$1.02600~~

Current price of AX97-30820 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX97-30820 Specifications

Type	Description
Series:	AX97
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±20%
Current Rating (Amps):	1.58 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	240mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.530" L x 0.370" W (13.46mm x 9.40mm)
Height - Seated (Max):	0.232" (5.90mm)
