PM105-470K-RC

PM105-470K-RC

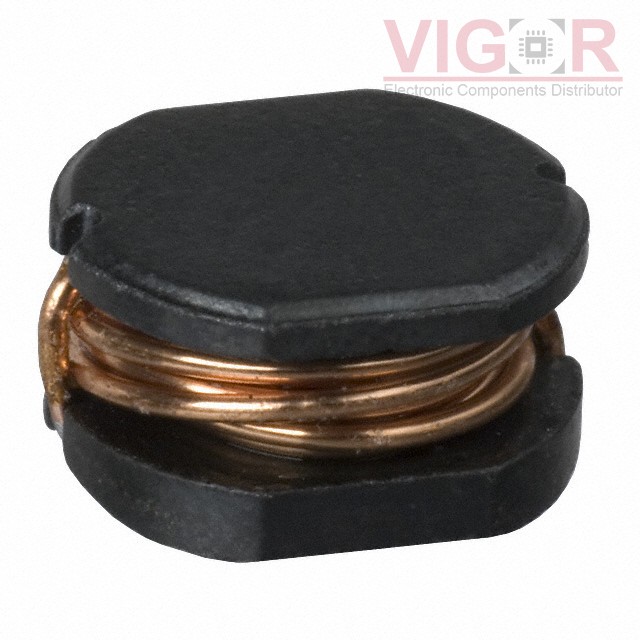

Image is for reference,
please contact us to get the real picture

Part No :

PM105-470K-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 47UH 1.25A 170MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
PM105-470K-RC PDF
Availability
5966 pieces
Unit Price
$1.33000

Current price of PM105-470K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105-470K-RC Specifications
Type Description
Series:PM105
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:47 µH
Tolerance:±10%
Current Rating (Amps):1.25 A
Current - Saturation (Isat):2.3A
Shielding:Unshielded
DC Resistance (DCR):170mOhm
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:8MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
