CDH2D09BNP-3R3MC

CDH2D09BNP-3R3MC

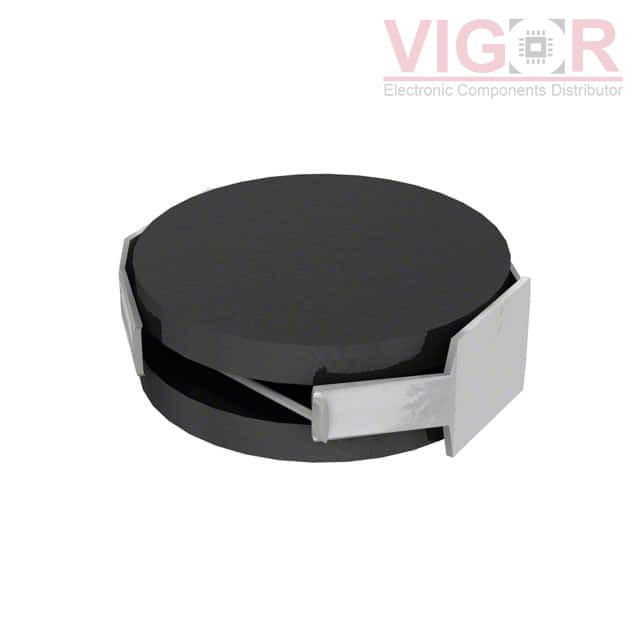

Image is for reference,
please contact us to get the real picture

Part No :

CDH2D09BNP-3R3MC

Manufacturer
Sumida Corporation
Description
FIXED IND 3.3UH 1.06A 188 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
CDH2D09BNP-3R3MC PDF
Availability
0 pieces
Unit Price
$0.37400

Current price of CDH2D09BNP-3R3MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDH2D09BNP-3R3MC Specifications
Type Description
Series:CDH2D09B
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):1.06 A
Current - Saturation (Isat):850mA
Shielding:Unshielded
DC Resistance (DCR):188mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.112" L x 0.106" W (2.85mm x 2.70mm)
Height - Seated (Max):0.039" (1.00mm)
