C-80U

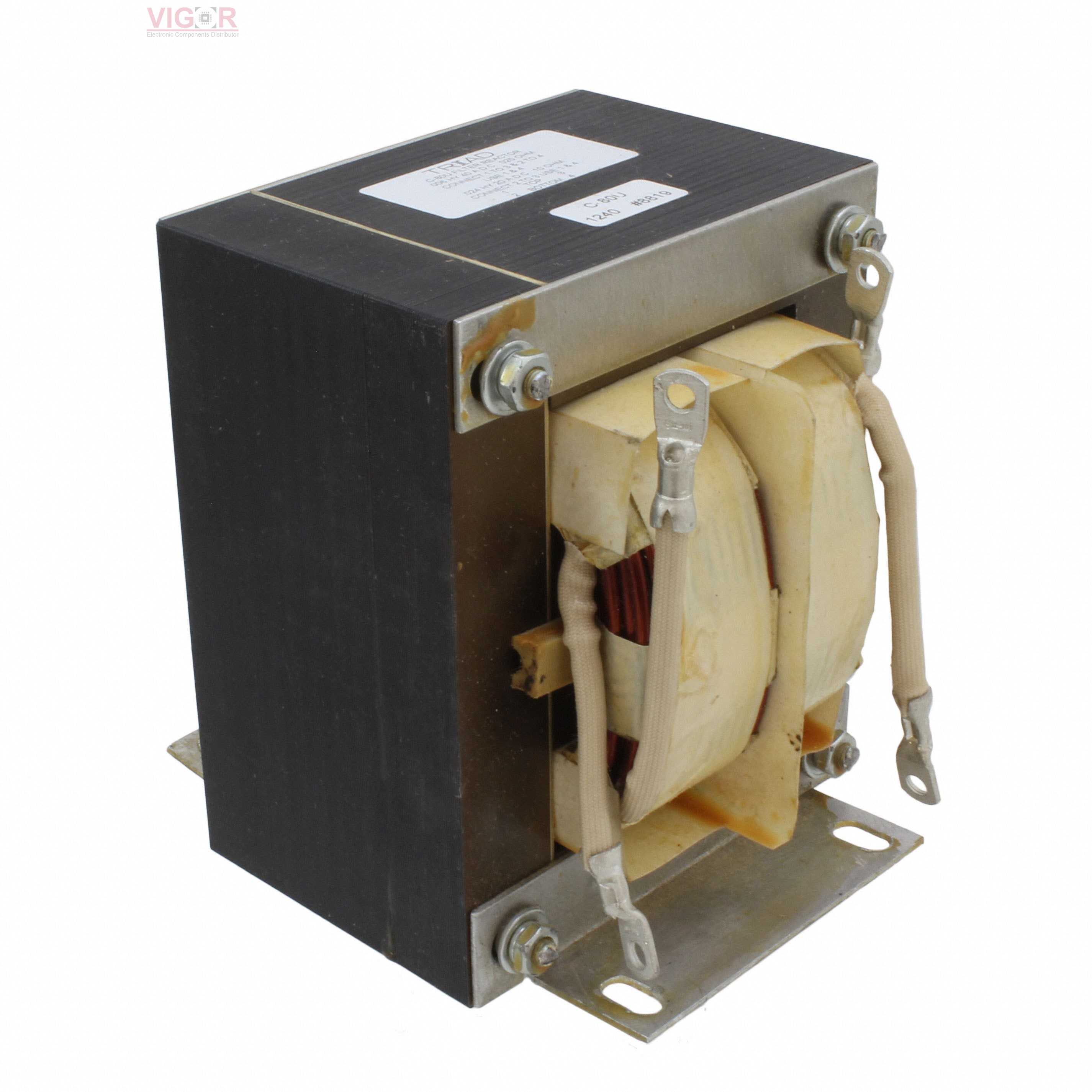

Image is for reference,
please contact us to get the real picture

Part No :: C-80U

Manufacturer: Triad Magnetics

Description: FIXED IND 24MH 20A 25 MOHM CHASS

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: C-80U PDF

Availability: 1677 pieces

Unit Price: ~~$190.32000~~

Current price of C-80U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C-80U Specifications

Type	Description
Series:	C
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	24 mH
Tolerance:	-20%, +50%
Current Rating (Amps):	20 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	25mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	120 Hz
Features:	-
Mounting Type:	Chassis Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	4.562" L x 5.500" W (115.87mm x 139.70mm)
Height - Seated (Max):	5.312" (134.92mm)
