LQW15AWR22J80D

LQW15AWR22J80D

Image is for reference,
please contact us to get the real picture

Part No :

LQW15AWR22J80D

Manufacturer
TOKO / Murata
Description
FIXED IND 220NH 220MA 2.75 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
LQW15AWR22J80D PDF
Availability
489 pieces
Unit Price
$0.29000

Current price of LQW15AWR22J80D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW15AWR22J80D Specifications
Type Description
Series:LQW15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:220 nH
Tolerance:±5%
Current Rating (Amps):220 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.75Ohm Max
Q @ Freq:33 @ 250MHz
Frequency - Self Resonant:1.1GHz
Ratings:-
Operating Temperature:-40°C ~ 140°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Size / Dimension:0.040" L x 0.024" W (1.02mm x 0.61mm)
Height - Seated (Max):0.026" (0.66mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW15AN2N8B80D

LQW15AN2N8B80D

FIXED IND 2.8NH 1.5A 47 MOHM SMD

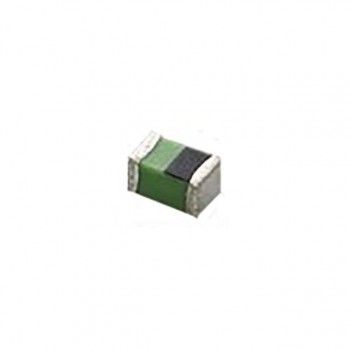

HOT LQG15WH0N7B02D

LQG15WH0N7B02D

FIXED IND 0.7NH 1.2A 30 MOHM SMD

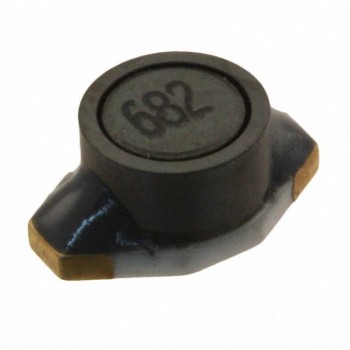

HOT ASPI-0403S-1R0M-T
