NLV25T-100J-EFD

NLV25T-100J-EFD

Image is for reference,
please contact us to get the real picture

Part No :

NLV25T-100J-EFD

Manufacturer
TDK Corporation
Description
FIXED IND 10UH 155MA 3.5 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
NLV25T-100J-EFD PDF
Availability
597 pieces
Unit Price
$0.32000

Current price of NLV25T-100J-EFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-100J-EFD Specifications
Type Description
Series:NLV-EFD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±5%
Current Rating (Amps):155 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.5Ohm Max
Q @ Freq:25 @ 2.52MHz
Frequency - Self Resonant:33MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ISC1812RV821J

ISC1812RV821J

FIXED IND 820UH 72MA 13.5 OHM

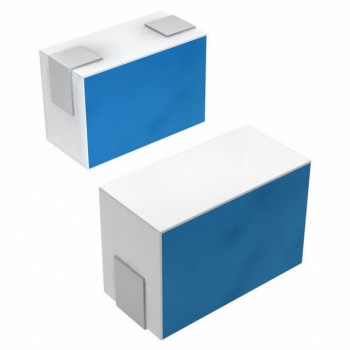

HOT LQP03HQ18NJ02D

LQP03HQ18NJ02D

FIXED IND 18NH 250MA 800 MOHM

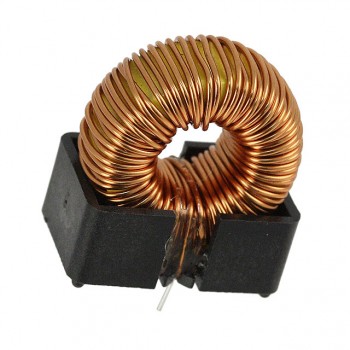

HOT PE-53114NL
