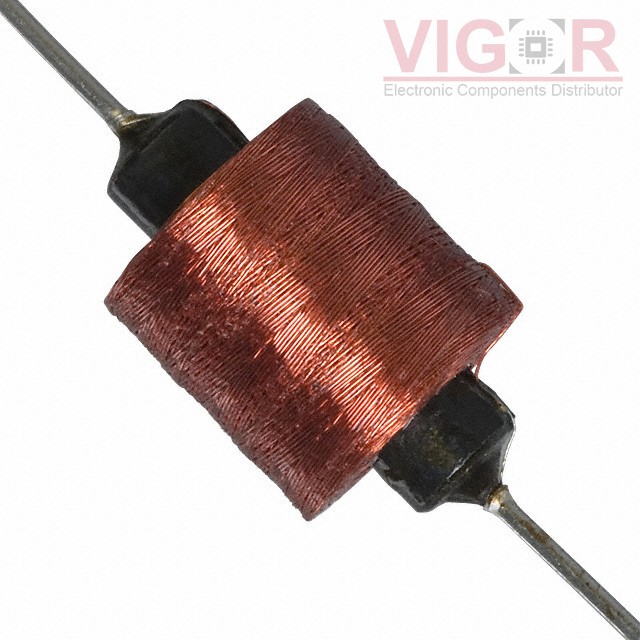

70F101AF-RC

70F101AF-RC

Image is for reference,
please contact us to get the real picture

Part No :

70F101AF-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 100MH 29MA 278 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
70F101AF-RC PDF
Availability
1926 pieces
Unit Price
$4.71000

Current price of 70F101AF-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

70F101AF-RC Specifications
Type Description
Series:70F
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:100 mH
Tolerance:±5%
Current Rating (Amps):29 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):278Ohm Max
Q @ Freq:48 @ 79kHz
Frequency - Self Resonant:157kHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:79 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.440" Dia x 0.630" L (11.18mm x 16.00mm)
Height - Seated (Max):-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQP03HQ4N0C02D

LQP03HQ4N0C02D

FIXED IND 4NH 500MA 170 MOHM
HOT CDRH125/LDNP-2R4NC

CDRH125/LDNP-2R4NC

FIXED IND 2.4UH SMD

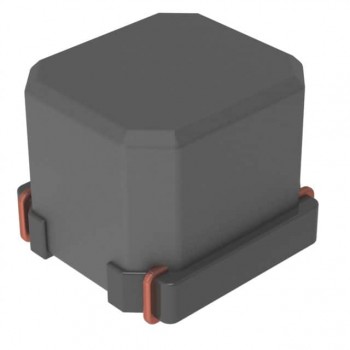

HOT LMLP1011MR47DTAS
