CW100505-56NJ

CW100505-56NJ

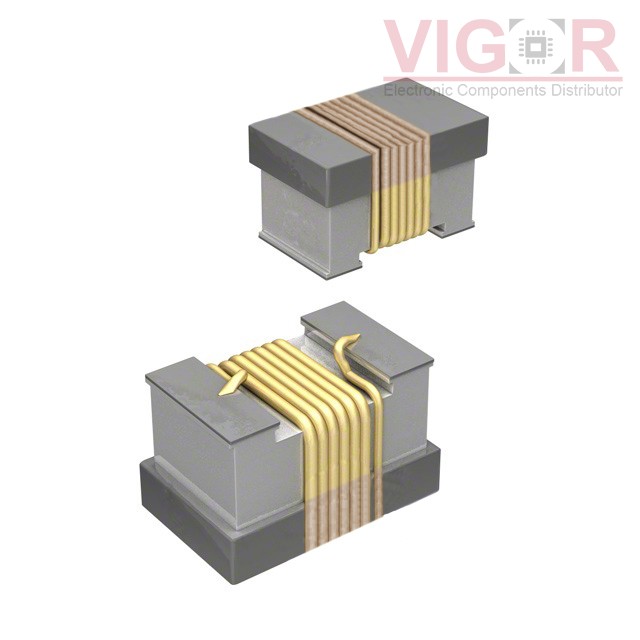

Image is for reference,
please contact us to get the real picture

Part No :

CW100505-56NJ

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56NH 200MA 970MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
CW100505-56NJ PDF
Availability
4050 pieces
Unit Price
$0.34000

Current price of CW100505-56NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-56NJ Specifications
Type Description
Series:CW100505
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):200 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):970mOhm
Q @ Freq:22 @ 200MHz
Frequency - Self Resonant:1.76GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):0.024" (0.60mm)
