PM42S-3R9-RC

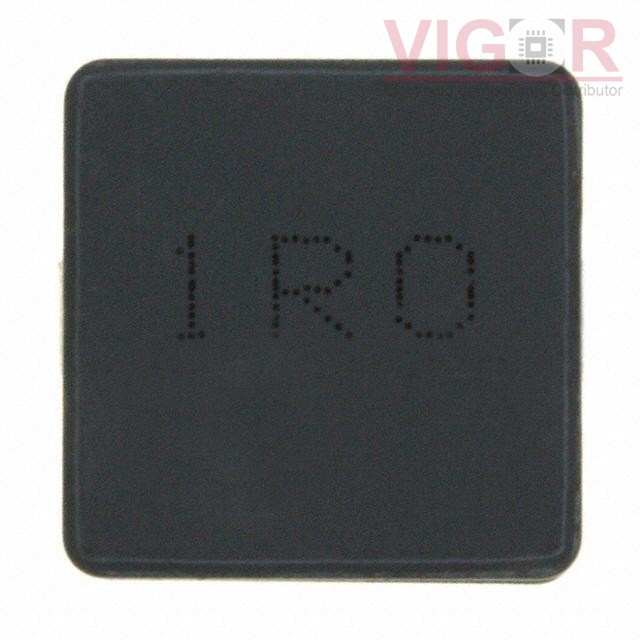

Image is for reference,
please contact us to get the real picture

Part No :: PM42S-3R9-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 3.9UH 1.82A 75MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: PM42S-3R9-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.70400~~

Current price of PM42S-3R9-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM42S-3R9-RC Specifications

Type	Description
Series:	PM42S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.9 µH
Tolerance:	±30%
Current Rating (Amps):	1.82 A
Current - Saturation (Isat):	1.65A
Shielding:	Shielded
DC Resistance (DCR):	75mOhm Max
Q @ Freq:	8 @ 7.96MHz
Frequency - Self Resonant:	60MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max):	0.118" (3.00mm)
