SRP2313AA-220M

SRP2313AA-220M

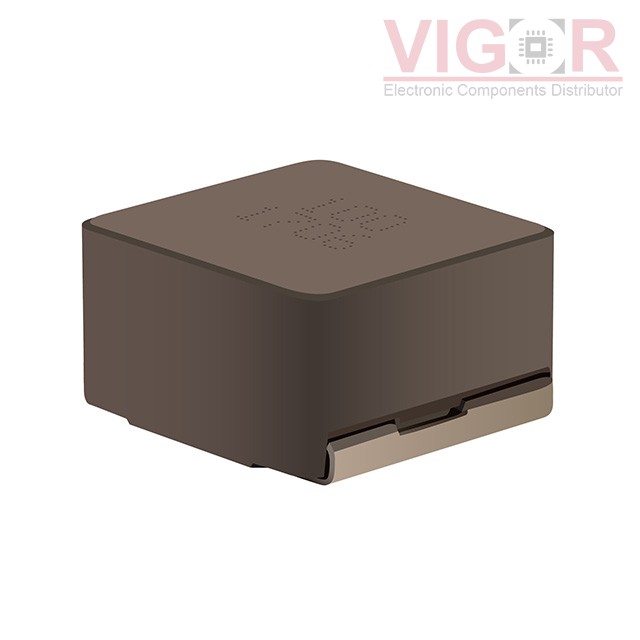

Image is for reference,
please contact us to get the real picture

Part No :

SRP2313AA-220M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 18A 11MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
SRP2313AA-220M PDF
Availability
65 pieces
Unit Price
$7.71000

Current price of SRP2313AA-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP2313AA-220M Specifications
Type Description
Series:SRP2313AA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):18 A
Current - Saturation (Isat):14A
Shielding:Shielded
DC Resistance (DCR):11mOhm Max
Q @ Freq:30 @ 100kHz
Frequency - Self Resonant:5MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max):0.512" (13.00mm)
