2727-22F

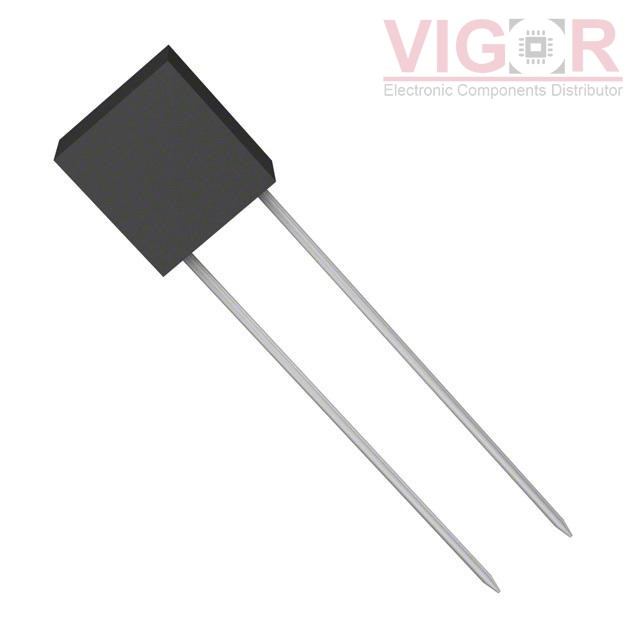

Image is for reference,
please contact us to get the real picture

Part No :: 2727-22F

Manufacturer: API Delevan

Description: FIXED IND 560UH 77MA 32 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 22 - Aug 26 2025

DataSheet: 2727-22F PDF

Availability: 0 pieces

Unit Price: ~~$72.82420~~

Current price of 2727-22F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2727-22F Specifications

Type	Description
Series:	2727
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron
Inductance:	560 µH
Tolerance:	±1%
Current Rating (Amps):	77 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	32Ohm Max
Q @ Freq:	55 @ 790kHz
Frequency - Self Resonant:	3.1MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical
Supplier Device Package:	-
Size / Dimension:	0.280" L x 0.160" W (7.11mm x 4.06mm)
Height - Seated (Max):	0.300" (7.62mm)

Please confirm the specifications of the products when ordering.
