LQH43PH220M26L

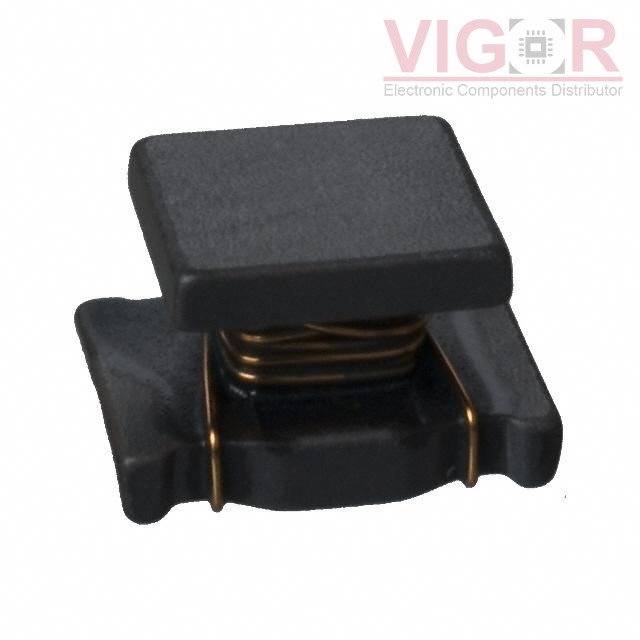

Image is for reference,
please contact us to get the real picture

Part No :: LQH43PH220M26L

Manufacturer: TOKO / Murata

Description: FIXED IND 22UH 780MA 392.4 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: LQH43PH220M26L PDF

Availability: 396 pieces

Unit Price: ~~$0.40000~~

Current price of LQH43PH220M26L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH43PH220M26L Specifications

Type	Description
Series:	LQH43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	780 mA
Current - Saturation (Isat):	700mA
Shielding:	Shielded
DC Resistance (DCR):	392.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)
