SRP5020C-R22M

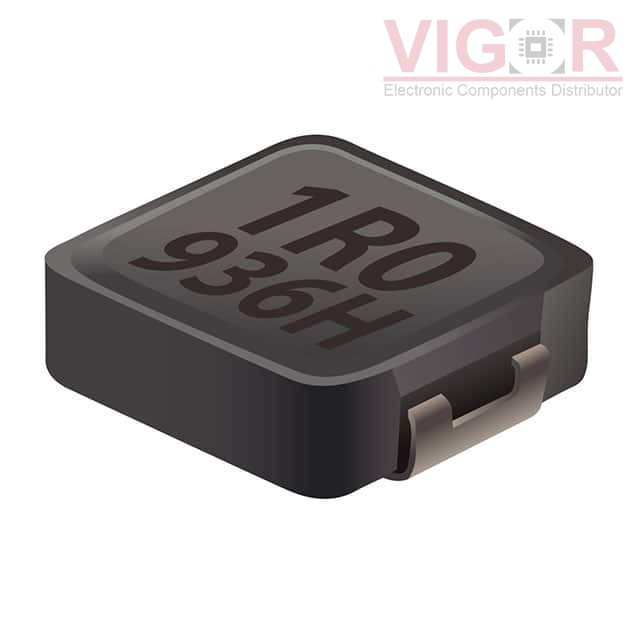

Image is for reference,
please contact us to get the real picture

Part No :: SRP5020C-R22M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 220NH 16A 4.6 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: SRP5020C-R22M PDF

Availability: 3175 pieces

Unit Price: ~~$1.08000~~

Current price of SRP5020C-R22M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP5020C-R22M Specifications

Type	Description
Series:	SRP5020C
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Metal
Inductance:	220 nH
Tolerance:	±20%
Current Rating (Amps):	16 A
Current - Saturation (Isat):	23A
Shielding:	Shielded
DC Resistance (DCR):	4.6mOhm Max
Q @ Freq:	5 @ 100kHz
Frequency - Self Resonant:	125MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max):	0.079" (2.00mm)
